Sky-Watcher HEQ5 Pro SynScan GoTo Mount — image 1
Sky-Watcher

Sky-Watcher HEQ5 Pro SynScan GoTo Mount

Before harmonic mounts existed, this is where deep-sky imaging started for most people, a German equatorial mount light enough to carry out to the car, steady enough to trust through a long exposure. The HEQ5 is the classic astrophotography on-ramp, and it still earns the spot.

85/ 100
Polaris Score
Performance · ease · portability · upgrade path
See the breakdown ↓
GoTo
Yes
Head Weight
7.7 kg
Imaging Payload
9 kg
Mount Type
German equatorial
Payload Capacity
14 kg
Tracking
Yes
From$1,695

Lowest in 90 days

Price tracked by PolarisObserved 55 timesTracking since Aug 2026

01What it's good at

What it's best at — and the trade-offs.

~14 kg visual / ~9 kg imaging payload handles small and medium refractors with ease
Best at
✓~14 kg visual / ~9 kg imaging payload handles small and medium refractors with ease
✓Noticeably lighter and easier to move than an EQ6-R, the portable end of serious imaging mounts
✓Decades of proven results, SynScan GoTo, and community tutorials for every question
Trade-offs
!Tighter payload ceiling than an EQ6-R, it favours refractors over big reflectors and SCTs
!Some periodic error (a small repeating tracking wobble), as its class has, autoguiding is expected for long exposures
!US pricing/stock varies, the shown price is estimated
02In plain English

The numbers, in plain English.

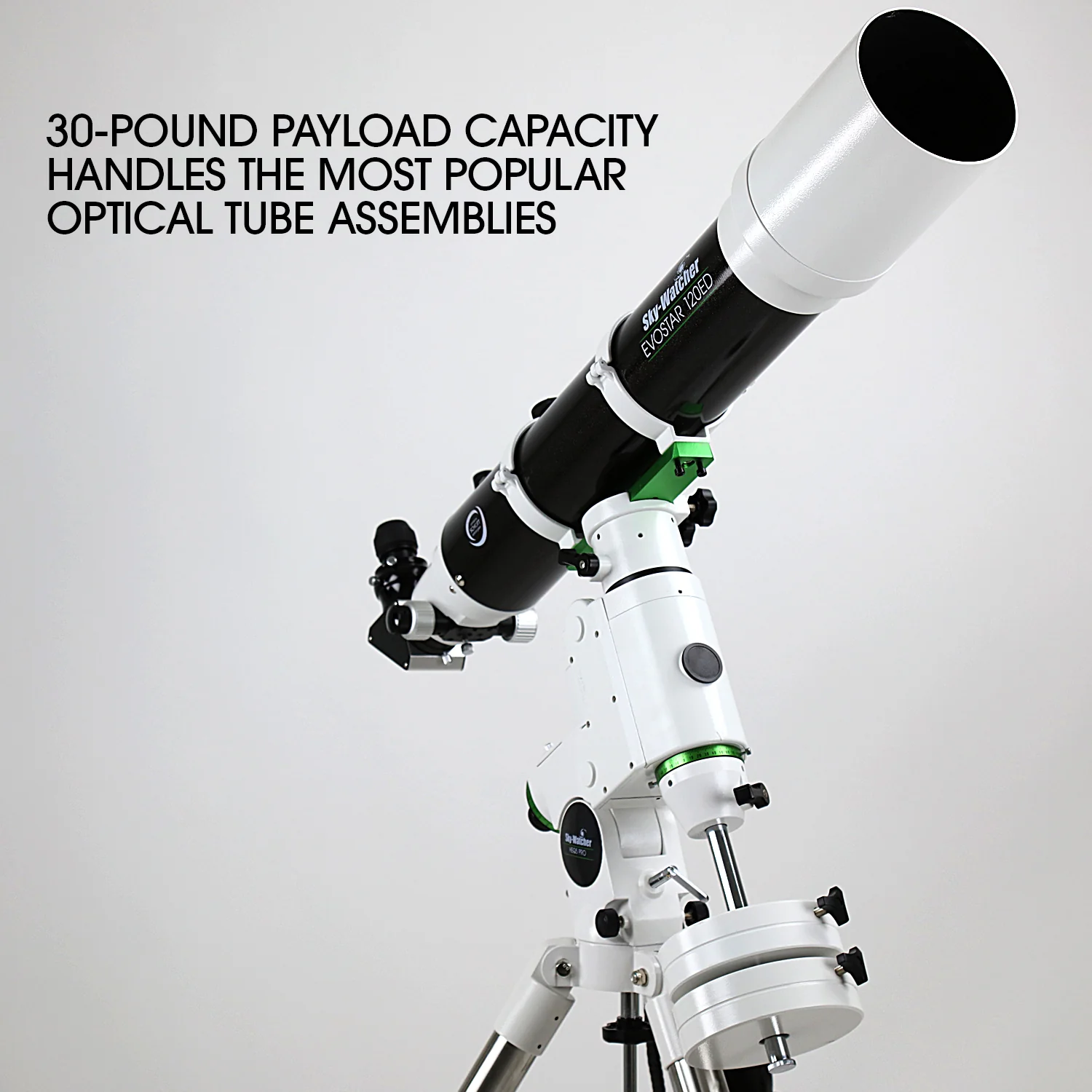

14kg payload
Payload
14 kg visual, ~9 kg imaging
Fourteen kilograms holds a six-inch Newtonian or a 100 mm apochromat steady at the eyepiece. For imaging, plan around 9 kg, which comfortably covers an 80 to 100 mm refractor with camera and guide scope, the classic first deep-sky rig.
Head weight

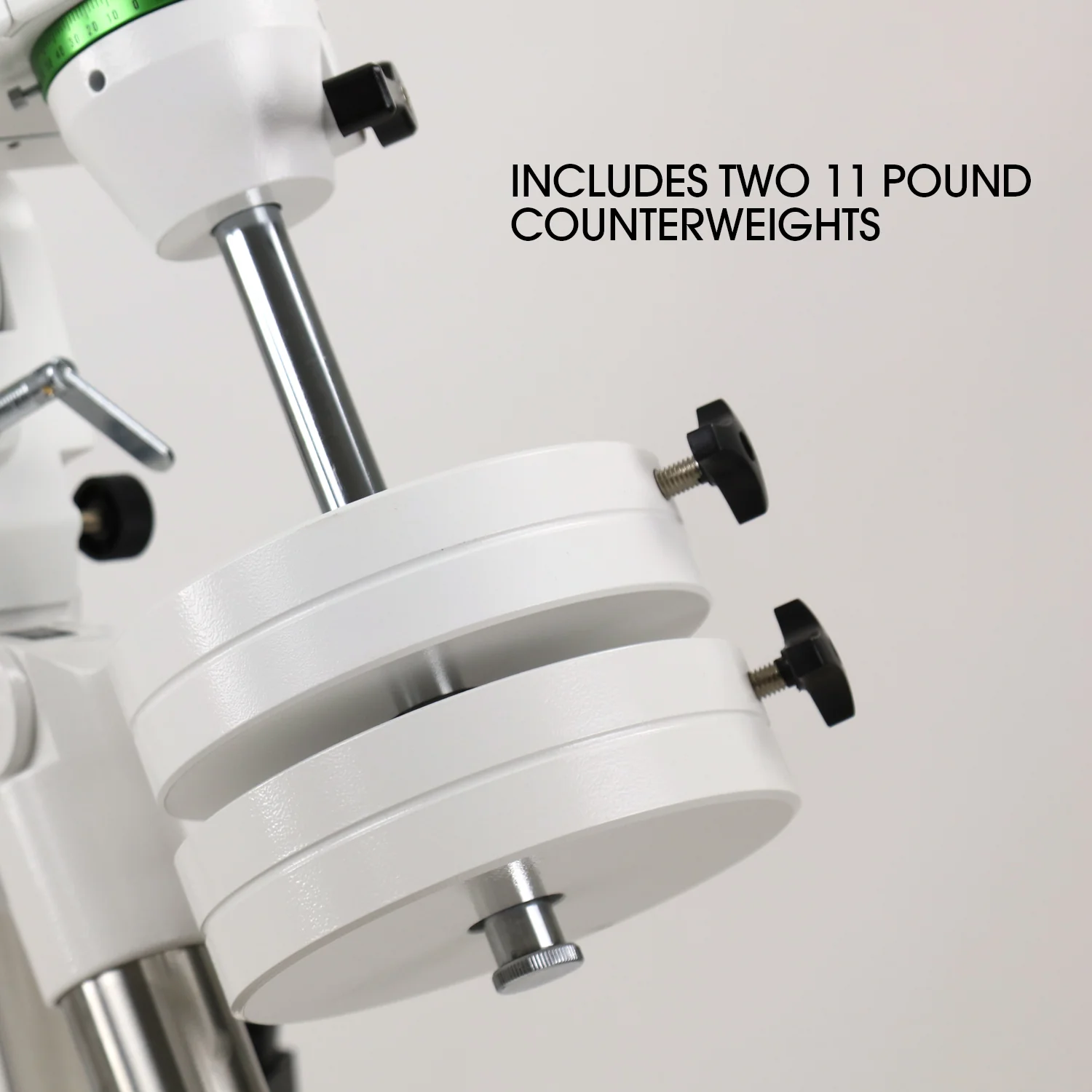

7.7 kg plus counterweights
Under 17 lb for the head is what made this mount popular: it is genuinely carryable to a car and back, which an EQ6 is not. Counterweights and tripod still follow, so expect two or three trips.

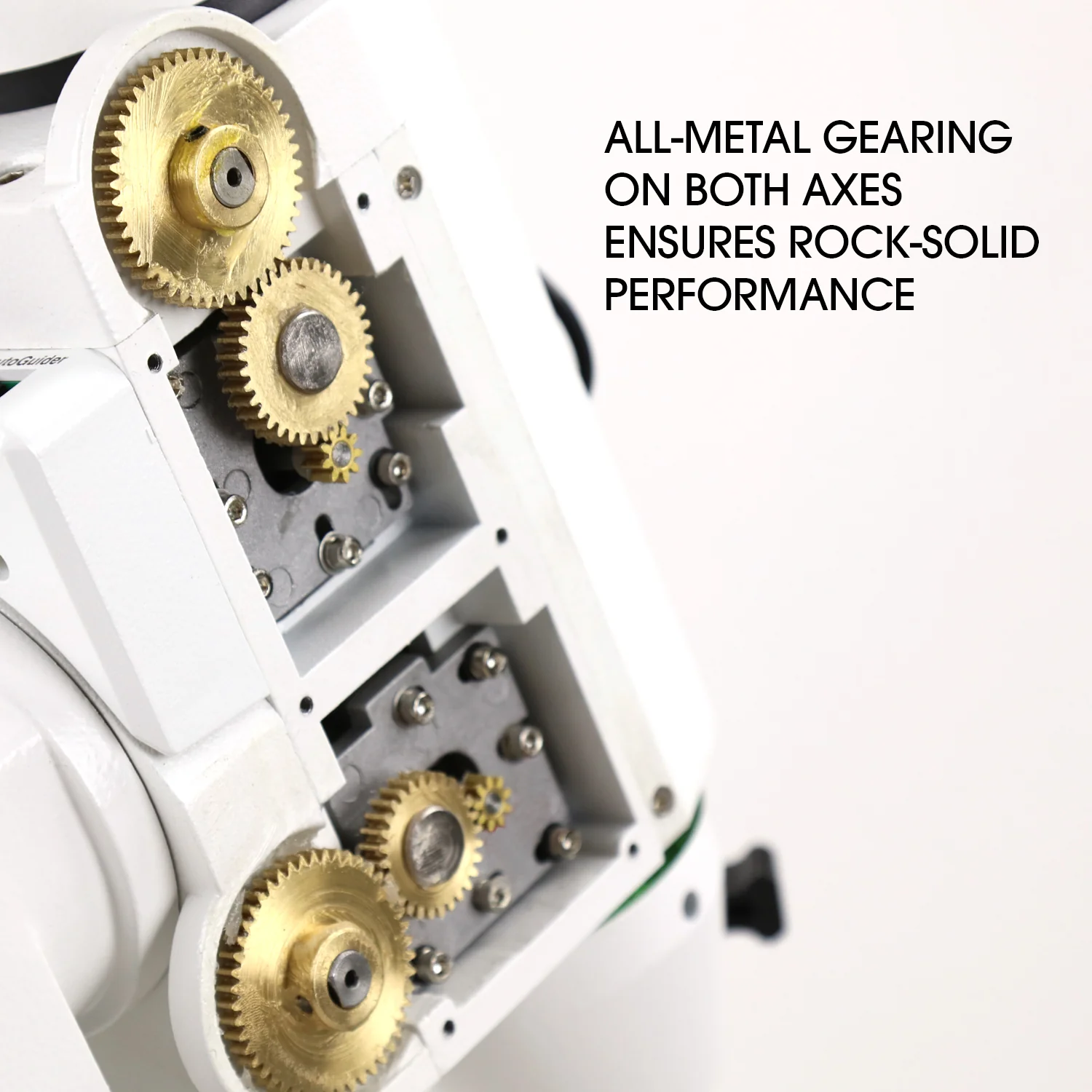

Drive type
Worm gear, GoTo, autoguider port
A conventional worm drive with measurable periodic error, largely correctable by autoguiding. Many owners fit a belt-drive conversion kit later, which is a well documented and worthwhile upgrade.
Mount class
German equatorial
Polar aligned and tracking on one axis, so there is no field rotation and long exposures are possible. It is the smallest mount in the Sky-Watcher line that most imagers consider genuinely capable rather than a compromise.
Power
12 V DC, external supply
No internal battery, so a power tank is part of the kit. Under-powering it produces slewing and tracking faults that look like mount defects but are not.
03The Polaris Score

How it scores, and why.

85/100
85/ 100
Sky-Watcher HEQ5 Pro SynScan GoTo Mount

A proven imaging platform that stays genuinely portable for its class. It sits a notch below the EQ6-R on raw capacity and the AM5N on portability, but it nails the middle.

Performance
85
Ease of use
80
Portability
70
Upgrade potential
80

Polaris weighs tracking and payload capability, how easy the mount is to live with, how portable it is, and how far it takes you before you outgrow it — not list price or brand.

04Who it's for

An honest fit check.

First-serious-imaging-mount buyers running a small-to-medium refractor
Buy it if you
✓First-serious-imaging-mount buyers running a small-to-medium refractor
✓Imagers who want a real German equatorial they can still carry to a dark site
✓Star Adventurer GTi owners whose rig has outgrown ~4–5 kg
Look elsewhere if you
!Anyone running a heavy scope or long focal length, step up to the EQ6-R
!Grams-counting travellers, a harmonic AM3N carries similar loads at a fraction of the weight
!Pure visual observers who don't need imaging-grade tracking
05The numbers

Full specifications.

7 measured and stated values
Mount & drive
Payload Capacity14 kg
More
GoToYes
Finds objects from a built-in database and points the mount at them automatically, then tracks.
Head Weight7.7 kg
Imaging Payload9 kg
Mount TypeGerman equatorial
TrackingYes
A motor turns the mount at the sky’s speed, holding your target still for long exposures. You still aim it yourself.
weight lbs22lbs
Editor’s Take

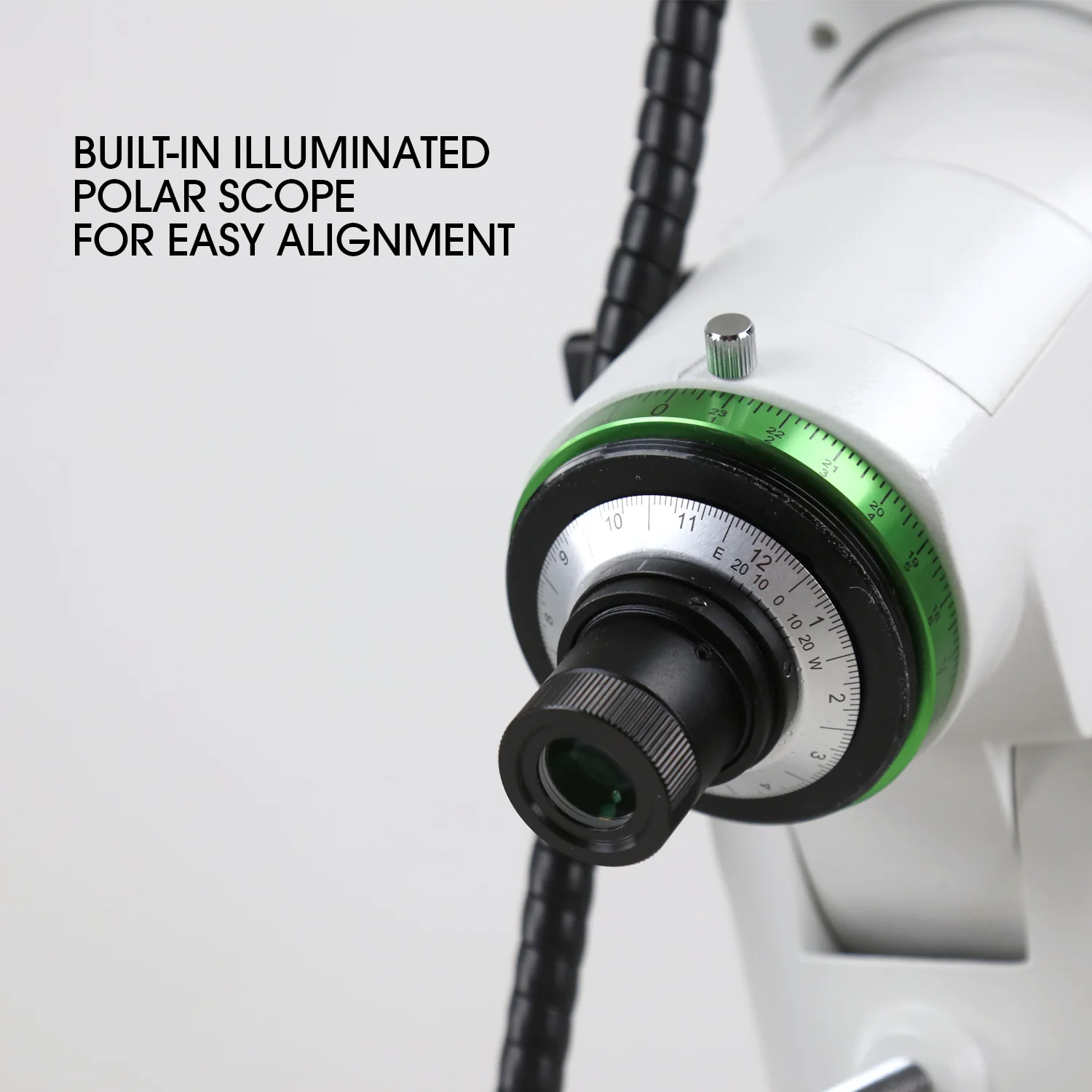

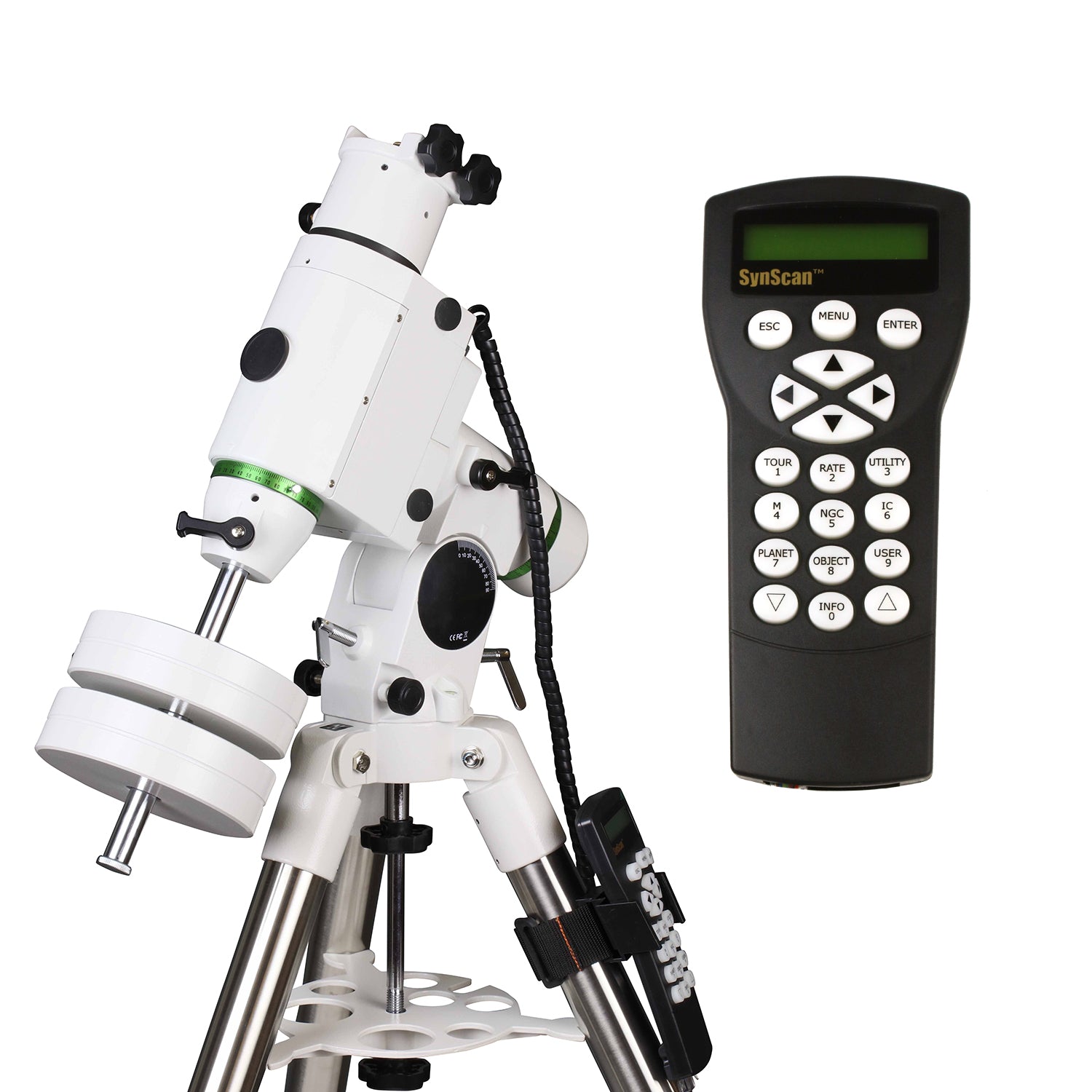

The HEQ5 is a German equatorial mount, telescope on one arm, counterweight on the other, sized as the classic on-ramp to deep-sky astrophotography. The workflow it teaches is the one all imaging mounts share: level the tripod, polar align (aim the mount's axis at the pole near Polaris through the polar scope), let the SynScan GoTo slew to your target, then run long exposures while an autoguider, a small second camera watching a star, feeds tiny corrections back so the stars stay pinpoint. It's light enough to carry to the car and back, steady enough to trust through those exposures, and it has decades of tutorials behind it. Harmonic mounts have since made it possible to carry more for less weight, but very few people regret the nights they spent learning to guide on an HEQ5.

— The Skynocular verdict
06Pairings

Pairs well with.

4 scopes we would actually put on this mount

The scopes we’d actually put on this mount — chosen for payload, balance and intended use. Comfortable means room to spare; near the limit still works, with care.

William Optics RedCat 51
Comfortable
William Optics
William Optics RedCat 51

Perfect, a featherweight refractor on the classic first imaging mount.

Sky-Watcher Evostar 72ED
Comfortable
Sky-Watcher
Sky-Watcher Evostar 72ED

The HEQ5’s sweet spot for tracked deep-sky.

Celestron EdgeHD 8
Comfortable
Celestron
Celestron EdgeHD 8

Comfortable, great for visual, fine for imaging at modest focal length.

Celestron EdgeHD 9.25" Advanced VX Telescope
Near the limit
Celestron
Celestron EdgeHD 9.25" Advanced VX Telescope

Within capacity but near the practical imaging ceiling, the heavier EQ6-R is its better home.

Strong and stable; a long-standing benchmark with healthy resale.

Community

Used in these setups.

Real builds from the community that include this product.

Widefield Nebula Imaging

Featured

Wide-field deep-sky imaging built around big emission nebulae. The SQA55's fast, flat field covers the whole ASI2600MC sensor, and the 7nm dual-band filter cuts the sky glow that otherwise buries Ha and OIII from a suburban backyard.
