Celestron

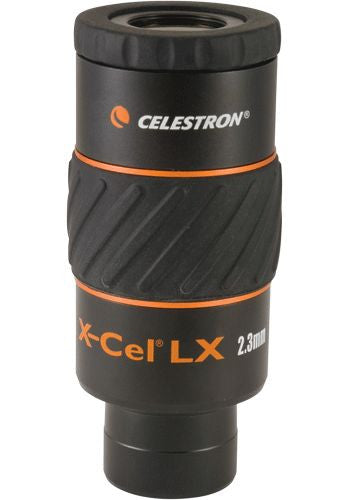

Celestron X-Cel LX 2.3mm

A 2.3mm Celestron X-Cel LX: a dedicated high-power eyepiece for planets, the Moon and tight double stars, from the reliable 60-degree all-rounder and the natural first upgrade from kit eyepieces.

77/ 100

Polaris Score

Optical quality · Immersion · Comfort · Value

See the breakdown ↓

What it's for

Low power · wide fieldHigh power · narrow field

High power. At 2.3mm this is a dedicated high-power eyepiece for planets, the Moon and tight double stars; it is not meant for framing large deep-sky objects.

Apparent Field

60°

Barrel Size

1.25"

Eye Relief

16mm

Focal Length

2.3mm

From$109.95

Lowest in 90 days

Price tracked by PolarisObserved 53 timesTracking since Jul 2026

Try in simulator →

Where to buy

Agena AstroProductsPartnerBest price$109.95→Astronomics$109.95→Starizona$109.95→

Verified just now · prices tracked daily

The spacewalk

You don’t look at a field.
You look into the sky.

Every number on the spec sheet matters less than one feeling: how much sky wraps around your eye. Widen the apparent field and watch the black edge of the eyepiece slip away.

60° apparent field

At 60°, you are aware of the field edge, like looking down a short, comfortable tube.

See this field in your own scope in the Simulator →

01What it's good at

What it's best at — and the trade-offs.

Best at

✓A constant 16mm of eye relief at every focal length, including the short planetary ones.

✓At 2.3mm it lands squarely in high power territory, exactly where planetary and lunar detail lives.

Trade-offs

!A 60-degree field is comfortable but not immersive next to an 82-degree eyepiece.

!Some lateral color on the Moon’s limb at the shortest focal lengths.

!Nothing here to excite an experienced observer chasing the widest fields.

02In your telescope

One eyepiece. A different job in every scope.

An eyepiece has no magnification of its own — the telescope decides. The same eyepiece becomes 209× and 17′ of sky in a little refractor, or 883× and a tight frame in a long SCT. Here’s what it does across common scopes.

Small apo refractor

480 mm · f/5.5

Magnification

209×

True field

17′

Exit pupil

0.4 mm

209× across a 17′ field at a 0.4mm exit pupil, very high power, worth it only on the steadiest nights.

8-inch Dobsonian

1200 mm · f/6

Magnification

522×

True field

7′

Exit pupil

0.4 mm

522× across a 7′ field at a 0.4mm exit pupil, very high power, worth it only on the steadiest nights.

12-inch Dobsonian

1500 mm · f/5

Magnification

652×

True field

6′

Exit pupil

0.5 mm

652× across a 6′ field at a 0.5mm exit pupil, very high power, worth it only on the steadiest nights.

8-inch SCT

2032 mm · f/10

Magnification

883×

True field

4′

Exit pupil

0.2 mm

883× across a 4′ field at a 0.2mm exit pupil, very high power, worth it only on the steadiest nights.

Exit pupil is how wide the beam of light leaving the eyepiece is. Around 5–6 mm is bright and immersive under dark skies; push much past 6 mm and you waste light, and under light pollution a smaller exit pupil shows more contrast.

02In plain English

The numbers, in plain English.

Focal lengthExtreme power

2.3mm

In an 8 inch f/5.9 Dobsonian this would give over 500x, far beyond what the atmosphere or the aperture can support. It exists for short refractors and small Maksutovs, where 2.3 mm produces a sensible 200x to 300x rather than an empty magnification.

Apparent fieldModerate

60°

Sixty degrees is welcome at extreme power, because the true field is tiny and anything narrower would make keeping a planet in view genuinely difficult in a manual telescope.

Eye reliefComfortable

16mm

Sixteen millimetres at 2.3 mm focal length is remarkable, since most eyepieces this short force your eye onto the lens. It is the single best argument for this design over a classic short orthoscopic.

BarrelStandard

1.25"

Fits any focuser or diagonal. At this focal length the field stop is tiny, so the format imposes no limit at all.

OpticsPlanetary value

Fully multi-coated

A six-element coated design with a rubber grip that stays usable in the cold. Match it to a short focal length telescope and it performs; put it in a long SCT and the magnification will simply outrun the seeing.

03What comes alive

The targets this eyepiece was born for.

Comes alive

Jupiter’s cloud belts

The two main belts and festoons resolve on steady nights.

Comes alive

Saturn’s rings

The Cassini Division opens up at this magnification.

Excellent

Lunar craters at the terminator

Crater walls and central peaks throw hard shadows.

Excellent

Izar and tight double stars

Splits pairs under an arcsecond apart when the air is calm.

Excellent

Mars at opposition

Polar cap and dark albedo markings when Mars is close.

Excellent

The Ring Nebula (M57)

Tightens the smoke ring and darkens the sky around it.

04Role in a collection

Where it sits in your eyepiece case.

A good eyepiece collection isn’t a pile of glass — it’s two or three focal lengths that hand off from wide to tight. This is the anchor at the bottom of the ladder: the one you find and frame with. You buy it once, and it stays your low-power eyepiece for life.

32 mm

Low power · wide field

Find, frame and sweep. Your widest true field and the lowest useful magnification, the eyepiece you reach for first.

Veil Nebula · Pleiades · Milky Way star clouds

13 mm

Medium power · the workhorse

Where most deep-sky objects look their best, galaxies, globulars and planetary nebulae at a comfortable scale.

M13 · Ring Nebula · most galaxies

2.3 mmThis one

High power · detail

Planets, the Moon at the terminator, tight double stars and the smallest planetary nebulae. Steady-air nights only.

Jupiter · Saturn · lunar craters

04Build around it

What it pairs with.

The telescope

What it goes into

Any 1.25-inch focuser

Fits essentially every telescope made.

Longer focal length scopes reward it

The higher the scope’s focal length, the more planetary scale you get from this eyepiece.

Pair it

What extends its range

A low-power finder eyepiece (~4mm)

Use the long eyepiece to locate and frame, then drop in this one for detail.

Filter it

What transforms the view

A neutral-density Moon filter

Tames the glare of a bright gibbous Moon at high power so detail returns.

02The Polaris Score

How it scores, and why.

77/ 100

Celestron X-Cel LX 2.3mm

Judged as a dedicated high-power eyepiece for planets, the Moon and tight double stars, it earns its score on a constant 16mm of eye relief at every focal length, including the short planetary ones. The comfortable eye relief lifts it further. It is honest about being a specialist, not an all-rounder.

Optical quality

Immersion

Comfort

Value

Polaris weighs how well the eyepiece does the job it was designed for — optics, immersion, comfort and value — never list price or brand.

03Who it's for

An honest fit check.

Buy it if you

✓Observers who want a dedicated high-power eyepiece for planets, the Moon and tight double stars.

✓Anyone who observes in eyeglasses; the eye relief here is long enough to see the whole field.

✓Observers who value on-axis contrast over a sprawling field.

Look elsewhere if you

!Anyone chasing the absolute widest field, who should look at a 100-degree eyepiece.

!Grab-and-go observers watching every gram, since this is not the lightest option.

!Anyone hoping to frame large nebulae; that is a job for a low-power eyepiece.

05The numbers

Full specifications.

Optical

Focal Length2.3mm

Apparent Field60°

Comfort & handling

Eye Relief16mm

Fit & build

Barrel Size1.25"

Editor’s Take

Point it at a planet on a steady night and the case makes itself. This is where the X-Cel LX earns its keep.

— The Skynocular verdict

06Alternatives

For a different goal, start here.

Wider, lower power

Celestron X-Cel LX 4mm

The same optics with more true field, for framing larger objects and finding your way around.

More magnification

Celestron X-Cel LX 3mm

The same line at higher power, for planets and the smallest deep-sky detail.

Cross-shop

Explore Scientific 62°

A natural alternative at a nearby price point, if you want to compare field and feel before committing.
